Retrofitting telephone (fixed installation) - AN82.70-P-0003AM: Notes

MODEL 220 up to 31.8.03 with CODE (316) MB GSM cellular telephone (D2B) except CODE (347) TELE AID emergency call system (D2B) except CODE (815) Dynamic navigation conversion of Motorola 2700 to Motorola 3788

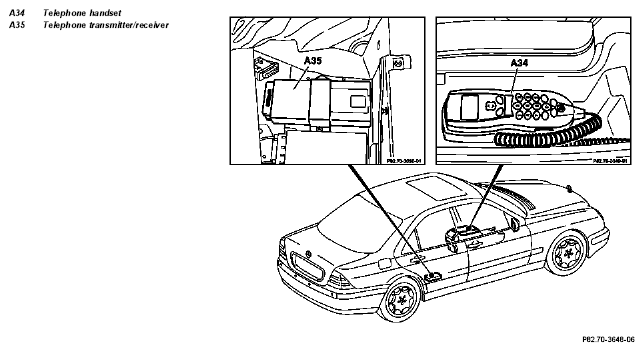

Fig 1: Identifying Telephone (Fixed Installation) Components Location - Model 220 Up To 31.8.03

	Remove
	Notes on telephone conversion for Tele Aid emergency call system	Model 220 with code (316) MB D-network telephone (D2B) with code (347) TELE AID emergency call system (D2B)	AH82.70-P-0001-10A
1.1	Connect no load current retention unit	Applies only to vehicles without code (347) TELE AID emergency call system (D2B).
		Quiescent current retention unit CMP 12.2	*WH58.30-Z-1012-09A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground cable
			AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove CTEL handset	Handset is no longer used.
		Model 220 up to 30.6.00 with code (316) MB D-network telephone (D2B) in center armrest	AR82.70-P-8912M
4	Remove rear seat cushion
		Models 220.0 /1 except code (223) Electrically adjustable rear bench seat except code (224) Electrically adjustable individual rear seats, with seat ventilation, heated seats, and memory package	AR91.12-P-1020MA
		Model 220.0 /1 with code (223) Electrically adjustable rear bench seat	AR91.12-P-1020M
5	Remove seat adjustment device on rear seat	Model 220.0 /1 with code (223) Electrically adjustable rear bench seat with code (224) Electrically adjustable individual rear seats, with seat ventilation, heated seats, and memory package
			AR91.12-P-1520M
6	Remove transmitter/receiver.	Transmitter/receiver is no longer required. Installation:  install new transmitter/receiver.
		Model 220 up to 30.6.00 with CODE (316) MB D-network telephone (D2B)	AR82.70-P-8911I
	Install
7	Retrofit telephone base holder	Install new tray with handset.	AN82.70-P-0003-05N
		Model 220 with code (316) MB D-network telephone (D2B) with code (347) TELE AID emergency call system (D2B)
8	Install in the reverse order	Steps 6 to 1.
9	Carry out start-up and function test
