Retrofitting fixed-installation telephone - AN82.70-P-0003MB

MODEL 215 up to 30.6.00 with CODE (750a) MB radio Audio 30 RDS

MODEL 215 up to 30.6.00 with CODE (750a) MB radio Audio 30 RDS with CODE (810) Sound system with CODE (819) 6-disk CD changer in trunk

MODEL 215 up to 30.6.00 with CODE (352a) COMAND operating and display system

MODEL 215 up to 30.6.00 with CODE (352a) COMAND operating and display system with CODE (810) Sound system with CODE (819) 6-disk CD changer in trunk

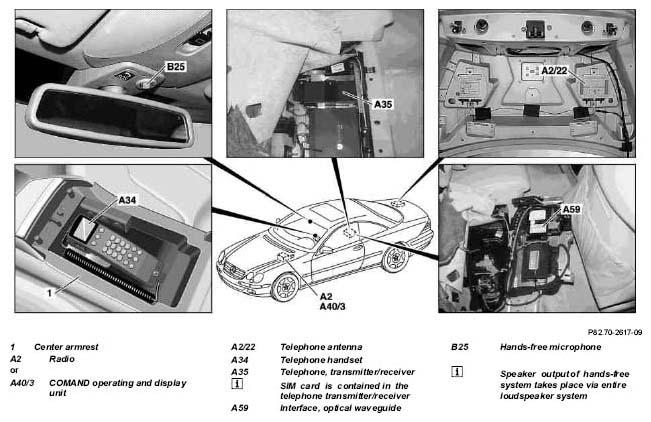

Fig 1: Identifying Fixed-Installation Telephone Components Location - Model 215 Up To 30.6.00
G04852698
IMPORTANT Notes on optical waveguide   AH82.70-P-0001-02A
REMOVING Removal
1 Disconnect ground cable of battery
REFER TO TESTING & REPAIR     AR54.10-P-0003I
2.1 Remove radio
REFER TO TESTING & REPAIR     AR82.60-P-7502N
2.2 Removing and installing operating/display unit with control module with COMAND (Code 352a) operating and display system
REFER TO TESTING & REPAIR     AR82.85-P-7472N
3 Remove rear passenger compartment floor covering
REFER TO TESTING & REPAIR     AR68.20-P-4800N
4.1 Open right cable duct
4.2 Open left cable duct with Sound system (code 810)
5 Remove rear backrest
REFER TO TESTING & REPAIR     AR91.12-P-1620MA
6 Remove side wall paneling only right side
REFER TO TESTING & REPAIR     AR68.30-P-1450N
7 Remove paneling in trunk
REFER TO TESTING & REPAIR     AR68.30-P-4600M
8 Remove SAM control module with fuse and relay box, front left IMPORTANT No removal, only remove far enough, so that an additional cable can be pulled through from driver's footwell and connected to fuse and relay box.
REFER TO TESTING & REPAIR     AR54.21-P-1260I
INSTALLING Installing
9 Install optical waveguide module
REFER TO TESTING & REPAIR     AR82.70-P-0004-01A
10.1 Retrofit optical waveguide cable harness except code 810, code 819 AN82.70-P-0002-01MA
REFER TO TESTING & REPAIR Cover optical waveguide NOTESDo not kink or stretch D2B optical waveguide  AR82.95-P-0005-01A
    IMPORTANT Fit optical waveguide connector and unit connection with caps
10.2 Retrofit optical waveguide cable harness with code 810, code 819 AN82.70-P-0002-01MB
REFER TO TESTING & REPAIR Cover optical waveguide NOTESDo not kink or stretch D2B optical waveguide  AR82.95-P-0005-01A
    IMPORTANT Fit optical waveguide connector and unit connection with caps
11 Retrofit telephone cable harness IMPORTANT Feed cable harness AN82.70-P-0002-03MB
12 Retrofit interface   AZ82.70-P-0001-07IB
13 Retrofit transmitter/receiver   AZ82.70-P-0001-06IA
14 Retrofit antenna   AN82.62-P-0001-02IA
15 Retrofit handset   AZ82.70-P-0001-09IA
16 Retrofit hands-free microphone   AN82.70-P-8969-04MA
17 Installation is carried out in reverse order IMPORTANT Stage 1, 2, 3, 4, 5, 6, 7, 8
18 Carry out start-up and function test IMPORTANT Carry out version coding (telephone) with STAR diagnosis
19 When modifying package code or designation of concerned special equipment, enter on vehicle card
PARTS ORDERING NOTES

Part no. Designation Quantity
A140 820 16 35 Motorola handset 1
A220 820 04 51 Mounting for handset 1
A220 823 01 34 Spring for spiral cable guide 1
A215 823 00 11 Adapter plate for assy. mount 1
A215 820 12 15 Cable, voltage supply in center armrest 1
A215 820 09 15 Adapter cable for receiver mounting 1
A215 540 22.05 Cable harness 1
A220 820 01 11 Floor panel (if not fitted) 1
A140 990 02 50 Collared plate nut for fastening floor plate 3
N 914 128 004 200 Plate collar screw for fixing the floor plate 1
A220 820 73 26 D2B control module Motorola 1
A001 990 21 36 PT screw for control module 2
A220 820 33 15 Adapter cable between transmitter/receiver unit and D2B interface 1
A220 820 14 35 Telephone transmitter/receiver unit 1
A220 823 04 32 Detent for telephone transmitter/receiver unit 1
N 007 985 005 124 Detent screw for telephone transmitter/receiver unit (M5x8) 2
A220 820 13 35 Hands-free microphone 1
A220 810 07 64 Mirror cover plate (Color according to interior equipment - 7D431A26AG691A36+equipment) 1
A215 820 02 75 Telephone antenna 1
A000 995 04 14 Cable tie (trunk) 1
A201 990 01 92 Body-bound rivet 1
  Cable harness/optical waveguide D2B differs according to equipment, which was fitted before installation
  No code 810 or code 819 installed in the vehicle
A220 540 38 09 Cable harness, D2B 1
  Code 810 or code 819 installed in the vehicle/code 810 and code 819 installed in the vehicle
A000 540 38 08 Optical waveguide module (order with length 7575 mm) 1
A000 540 38 08 Optical waveguide module (order with length 3285 mm) 1
A036 545 08 28 D2B connector housing 1
A036 545 09 28 D2B connector housing 1
