CTEL antenna, location/purpose - GF82.62-P-4105A: Notes

MODEL 215 with CODE (348a) Emergency call system EMERGENCY CALL with CODE (498) Japanese version with CODE (494a) USA version

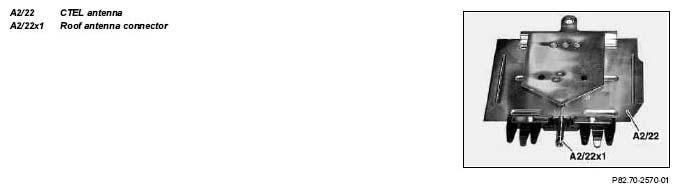

Fig 1: Identifying CTEL Antenna Location
G04841013
  CTEL antenna, location   GF82.62-P-4105-01B
  CTEL antenna, purpose
  • Converting electro-magnetic radio waves into electrical currents and vice versa
  • Connecting antenna cable
