Hands-free microphone, location/purpose - GF82.70-P-4102S

Models 215, 220

Location in the overhead control panel

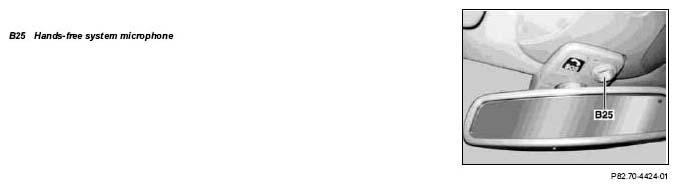

Fig 1: Identifying Hands-Free System Microphone
G04841066
  Hands-free system microphone, location The microphone is located in the base of the inside rearview mirror.
  Hands-free system microphone, purpose
  • Voice input for telephoning via the hands-free system
  • Voice input for telephoning via the voice control system (VCS) (interactive dialog with the voice control system)
  • Voice input for an emergency call (TELE AID)
