Special vehicle multifunction control module, location/purpose - GF82.25-P-4104MB

MODEL 220.175 /178 with CODE (979) Special protection version

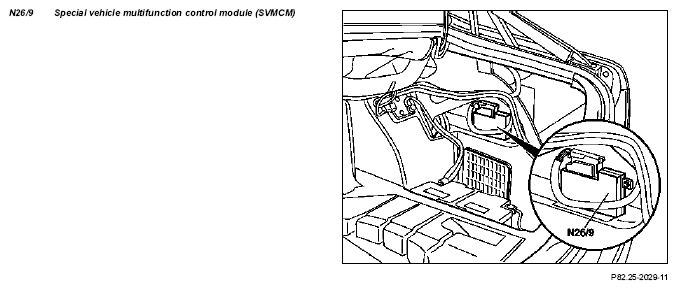

Fig 1: Identifying Special Vehicle Multifunction Control Module Location
G04840969
  Special vehicle multifunction control module (SVMCM), location The special vehicle multifunction control module (SVMCM) is located in the trunk on the right side wall.
  Special vehicle multifunction control module (SVMCM), purpose   GF82.25-P-4102-02MB
