Remove/install daylight sensor - AR82.10-P-2400I
Models 215, 220

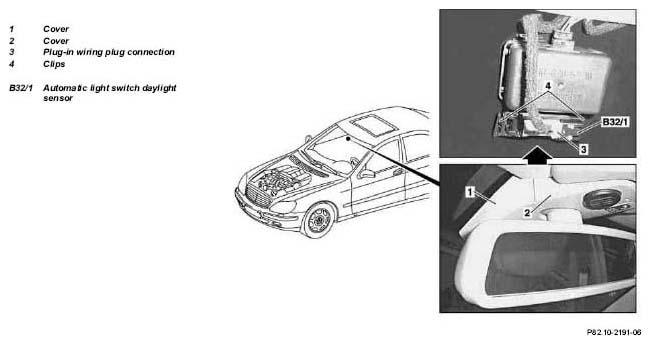

Shown on model 220
MODIFICATION NOTES
| 11.4.03 | Disconnecting ground lead from battery newly included | Step 1 |
| Remove/Install | |||
| 1 | Disconnect ground cable of battery | AR54.10-P-0003I | |
| 2 | Remove overhead control panel control unit | AR82.20-P-1000M | |
| 3 | Unclip covering (1) | ||
| 4 | Unclip covering (2) | ||
| 5 | Release clips (4) on left and right | ||
| 6 | Remove automatic light switch daylight sensor (B32/1) | Do not replace |
|
| 7 | Unplug electrical connector (3) from automatic light switch daylight sensor (B32/1) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform function check |
