Removing and installing instrument cluster - AR54.30-P-6015I

MODEL 215, 220

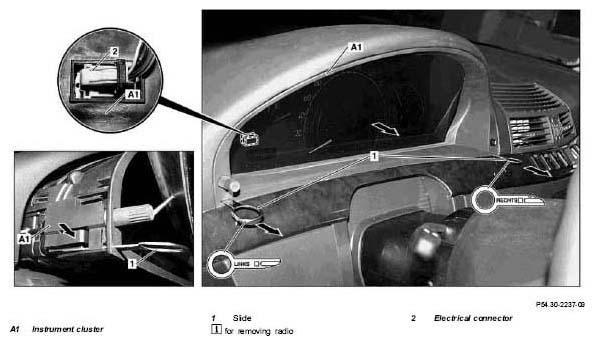

Fig 1: Identifying Instrument Cluster Remove/Install Components - Shown On Model 220

Shown on model 220

	Removal, installation
1	Connect quiescent current retention unit		AR54.10-P-1030-07I
2	Disconnect ground lead from battery		AR54.10-P-0003I
3	Move steering wheel toward driver and toward vehicle floor
4	Pull out instrument cluster (A1)	To do this, push in slide (1)
		Installation:  Press back retaining springs (arrow) on instrument cluster (A1) removed and pull out slide (1)
5	Release lock on connector (2) and remove connector
6	Install in opposite order

PARTS ORDERING NOTES

Part no.	Designation	Quantity
000 833 03 61	Slide	2
