Separating SAM control module from fuse and relay box - AR54.21-P-1259-01I

Shown on rear SAM control module

1. Pry out SAM control module (N10/6, N10/7, N10/8) at the multiple plug of the fuse and relay module (K40/5, K40/6, K40/7).

   To do this drive a suitable screwdriver into the recesses (A, B) and turn screwdriver through 90°.

   Observe data plate (2) on the SAM control module

2. Pull down the SAM control module until the control module can be removed from the guides (C, D).

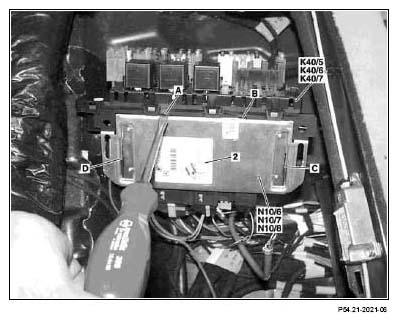

   Fig 1: Identifying SAM Control Module, Data Plate And Guides - Shown On Rear SAM Control Module
