Removing and installing Parktronic system (PTS) warning indicator in rear dome lamp - AR54.65-P-0004B

MODEL 208, 215, 220 with CODE (220a) Parktronic system (PTS)

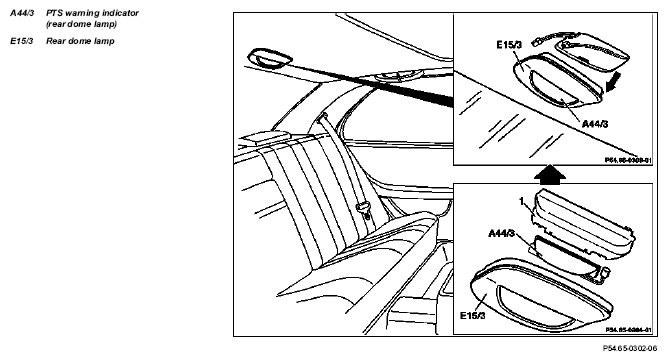

Fig 1: Identifying Parktronic System Warning Indicator Remove/Install Components

	Removal, installation
1	Pull rear dome lamp (E15/3) together with PTS warning indicator (A44/3) out of headliner	Pull left side out of headliner first (arrow)
2	Disconnect connectors from dome lamp and PTS warning indicator
3	Unclip cover (1) at rear dome lamp
4	Unclip PTS warning indicator from dome lamp
5	Reinstall in opposite order
