Removing and installing Parktronic System (PTS) switch - AR54.65-P-0005N
MODEL 215 with CODE (220a) Parktronic System (PTS)
| Removing, installing | |||
| 1 | Remove center console cover | AR68.20-P-2350N | |
| 2 | Remove upper control panel control module | AR54.21-P-1262N | |

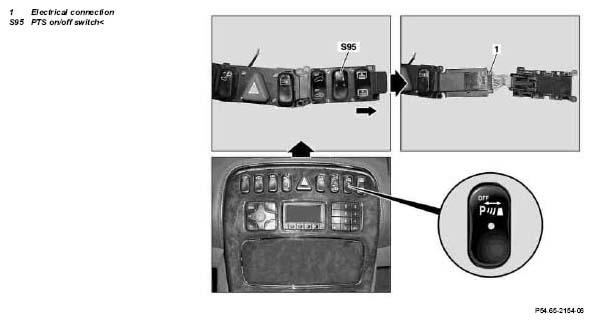

| 3 | Remove switch group with PTS on/off switch (S95) | ||
| 4 | Disconnect electrical connection (1) | ||
| 5 | Install in reverse order |
