Removing and installing Parktronic system (PTS) control module - AR54.65-P-0006I

MODEL 215, 220 with CODE (220a) Parktronic system (PTS)

Shown on model 220

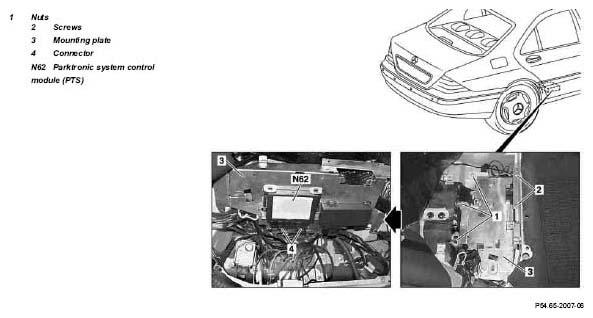

Fig 1: Identifying Parktronic System (PTS) Control Module Remove/Install Components - Shown On Model 220

	Removal, installation
1	Connect quiescent current retention unit		AR54.10-P-1030-07I
2	Disconnect ground lead from battery		AR54.10-P-0003I
3.1	Remove rear seat cushion	Model 215	AR91.12-P-1020N
		Model 220	AR91.12-P-1020MA
3.2	Remove independent seats	Model 220 with code 401, right-hand side	AR91.12-P-1020M
4.1	Remove rear seat adjustment mechanism	Model 220 with code 401, right-hand side	AR91.12-P-1520M
5	Unscrew screws (1) and nuts (2) and remove mounting plate (3) from vehicle floor
6	Release connectors (4) on Parktronic system control module (N62) and disconnect
7	Push Parktronic system control module out of guide rails (direction of arrow) and remove from mounting plate
8	Install in reverse order
