Perform adjustments to the control system - AR54.30-P-1000-02RAM

Activate tire pressure monitor.

Before activating tire pressure monitoring system: correct tire pressure of all wheels.

1. Switch on ignition.
2. Press the system selection button (S110s3) repeatedly until the kilometer reading is displayed in the multifunction display (A1p13).
3. Press the scroll forward/back button (S110s1) repeatedly until (A1p13) the tire pressure display or the message "TIRE PRESSURE MONITOR, PRESSURE DISPLAY AFTER DRIVING FOR A FEW MINUTES, REACTIVATE WITH R-BUTTON" is shown in the multifunction display.

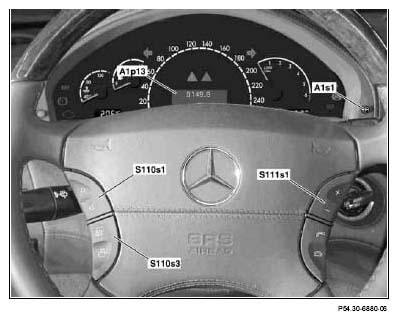

   Fig 1: Identifying Pressure Display And System Selection Button


4. Press reset button.
5. Inquiry "ACT. Confirm MONITOR TIRE PRESSURE?" in the multifunction display (A1p13) by pressing the button + and -, setting specific functions and volume control (S111s1)

   The message "TIRE PRESSURE MONITOR ACTIVATED" appears in the multifunction display (A1p13).

6. Drive the vehicle for several minutes.

   Until the individual tire pressure values are detected, the (A1p13) the message "TIRE PRESSURE MONITOR, PRESSURE DISPLAY AFTER DRIVING FOR A FEW MINUTES, REACTIVATE WITH R-BUTTON" is shown in the multifunction display.

7. Switch off ignition.
