Install headliner wiring harness - AR54.18-P-0020MA

MODEL 220.0 /1 with CODE (494a) USA version

Shown on model 220.1 with code (414a) electric glass tilting/sliding roof and code (220a) Parktronic system and code (882b) interior monitoring (only with anti-theft alarm system)

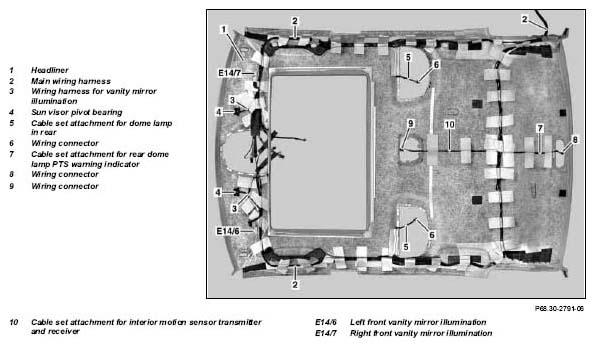

Fig 1: Overview Of Headliner Wiring Harness - Shown On Model 220.1 With Code (414a, 220a And 882b)
G04849700

Shown on model 220.1 with code (414a) Electric glass tilting/sliding roof

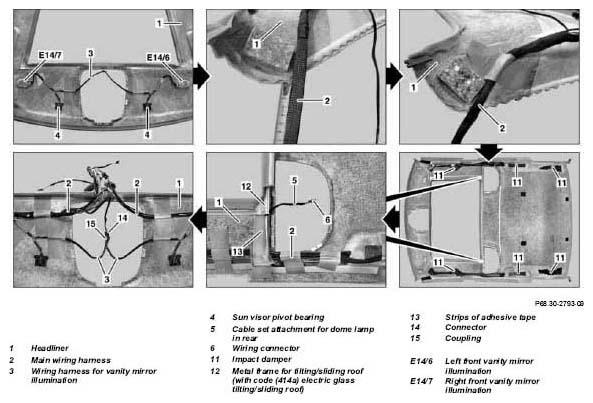

Fig 2: Overview Of Headliner Wiring Harness - Shown On Model 220.1 With Code (414a) Electric Glass Tilting/Sliding Roof
G04849701
REMOVING Install
IMPORTANT A new main wiring harness (2) must only be installed when replacing the headliner (1). On vehicles with ribbon cable the relevant normal main wiring harness (2) must be used. The headliner model refinement was only carried out from September 2002 to January 2003.
Use the old headliner (1) as a guide for routing the main wiring harness (2)

1 Place new headliner (1) on a clean surface
2 Support the new headliner (1) with suitable clean spacers, e.g. foamed material or styrofoam blocks. NOTES Do not use any hard or sharp-edged objects, otherwise the covering of the new headliner (1) will be damaged.
IMPORTANT This prevents the new headliner (1) from bending during the following steps.

3 Clip left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7) into left and right installation frame.
4 Connect wiring harness for vanity mirror illumination (3) to left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7)
5 Unclip covering from left and right sun visor pivot bearing (4)
6 Install left and right sun visor pivot bearing (4) in headliner (1) and clip in covering.
7 Route wiring harness for vanity mirror illumination (3) and fasten to headliner (1) using approx. 10 cm strips of adhesive tape (Tesaband 4657) positioned approx. 10 cm apart as illustrated.
    Tesaband 4657 *BR00.45-Z-1071-02A
8 Measure overhang of main wiring harness (2) at C-pillar of old headliner (1) and ensure new main wiring harness (2) hangs over the same distance.
9 Route new main wiring harness (2) starting at C-pillar on new headliner (1) and in impact absorbers (11) and secure using approx. 10 cm strips of adhesive tape (Tesaband 4657) positioned approx. 10 cm apart as illustrated. NOTES Do not cross main wiring harness (2) and cable set attachments and press down strips of adhesive tape well otherwise short circuit can occur due to chafing.
    Tesaband 4657 *BR00.45-Z-1071-02A
10 Route cable set attachment for interior motion sensor transmitter and receiver (10) and fasten to headliner (1) using approx. 10 cm strips of adhesive tape (Tesaband 4657) positioned approx. 10 cm apart as illustrated. IMPORTANT Begin routing at wiring connector (9), route excessive lengths in loops at main wiring harness (2) and secure using Tesaband 4657
    Tesaband 4657 *BR00.45-Z-1071-02A
11.1 Fasten wiring connector (9) of cable set attachment for interior motion sensor transmitter and receiver (10) to headliner (1) using Tesaband 4657 On vehicles without code (882b) interior monitoring (only with anti-theft alarm system)
    Tesaband 4657 *BR00.45-Z-1071-02A
12 Route cable set attachment for rear dome lamp PTS warning indicator (7) and fasten to headliner (1) using approx. 10 cm strips of adhesive tape (Tesaband 4657) positioned approx. 10 cm apart as illustrated. IMPORTANT Begin routing at wiring connector (8), route excessive lengths in loops at main wiring harness (2) and secure using Tesaband 4657
    Tesaband 4657 *BR00.45-Z-1071-02A
13.1 Fasten wiring connector (8) of cable set attachment for rear dome lamp PTS warning indicator (7) to headliner (1) using Tesaband 4657 Vehicles without code (220a) Parktronic system (PTS)
    Tesaband 4657 *BR00.45-Z-1071-02A
14.1 Route cable set attachment for dome lamp in rear (5) on left and right and fasten to headliner (1) using approx. 10 cm strips of adhesive tape (Tesaband 4657) Except model 220.0 with code (414a) Electric glass tilting/sliding roof
IMPORTANT Begin routing at wiring connector (6), route excessive lengths in loops at main wiring harness (2) and secure using Tesaband 4657

    Tesaband 4657 *BR00.45-Z-1071-02A
14.2 Guide cable set attachment for dome lamp in rear (5) on left and right underneath metal frame for tilting/sliding roof (12) and secure to headliner (1) with strips of adhesive tape (13) (Tesaband 4657) below metal frame for tilting/sliding roof (12) On model 220.0 with code (414a) Electric glass tilting/sliding roof
    NOTES Press down strips of adhesive tape well otherwise cable set attachment for dome lamp in rear (5) on left and right touches metal frame for tilting/sliding roof (12) after dome lamps have been installed and short circuit can occur due to chafing.
IMPORTANT Begin routing at wiring connector (6), route excessive lengths in loops at main wiring harness (2) and secure using Tesaband 4657

    Tesaband 4657 *BR00.45-Z-1071-02A
15 Connect up connector (14) of main wiring harness (2) and coupling (15) of vanity mirror illumination wiring harness (3) IMPORTANT Connector (14) and coupling (15) have distinct designs and are color coded.
16 Prepare headliner (1) for installation.   AR68.30-P-4305M
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1071-02A Adhesive tape A 001 989 17 85
