Removing and installing keyless go antenna - AR82.62-P-8000MB
MODEL 220.026 /028 /063 /065 /070 /075 /128 /165 /170 /175 /178 /875 /878 with CODE (889) Keyless go in rear door

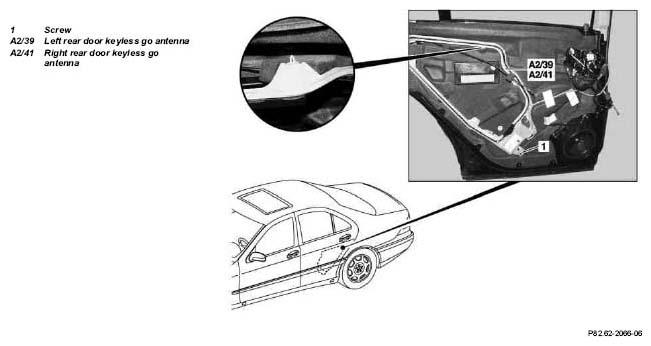

Illustrated on model, Series 220.026
| Removing, installing | |||
| 1 | Remove door liner from rear door | Model 220.026/028/063/065/070/075/128/165/170/173/175/178; 220.875/878 without electrically adjustable curtains, code P082 | AR72.12-P-1010M |
| Model 220.875/878 with electrically adjustable curtains, code P082 | AR72.12-P-1010MP | ||
| 2 | Unscrew screws (1) | ||
| 3 | Disconnect connector | ||
| 4 | Unclip left and right rear door keyless go antenna (A2/39, A2/41) and remove | ||
| 5 | Install in the reverse order |
