Removing and installing upper section of instrument panel - AR68.10-P-1020N
MODEL 215
| Removal | |||
| 1 | Unclip cover on left (20) and right (21) on upper section of instrument panel (13) |

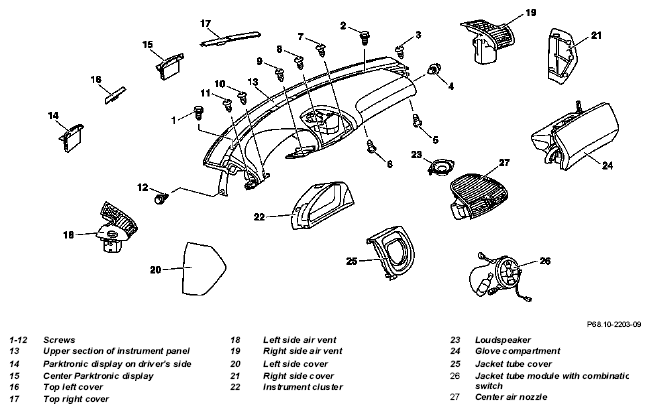

Figure | |
| 2 | Remove left (18) and right (19) side air vents | AR68.10-P-1100N | |
| 3 | Remove loudspeaker (23) from upper center section of instrument panel | AR82.62-P-7833N | |
| 4 | Remove center air nozzle (27) | AR68.10-P-1150N | |
| 5 | Remove Parktronic displays (14, 15) | AR54.65-P-0003B | |
| 6 | Unclip covers (16, 17) | ||
| 7 | Remove glove compartment (24) | AR68.10-P-1400M | |
| 8 | Remove instrument cluster (22) | AR54.30-P-6015I | |
| 9 | Remove jacket tube module (26) with combination switch | AR54.25-P-2802I | |
| 10 | Remove jacket tube cover (25) | AR68.10-P-1060N | |
| 11 | Unscrew screws (1-12) | ||
| 12 | Remove upper section (13) of instrument panel | ||
| 13 | Install in opposite order |
