Removing and installing glove compartment lid - AR68.10-P-1200M

MODEL 215, 220

Fig 1: Identifying Glove Compartment Lid Remove/Install Components - Model 215,220

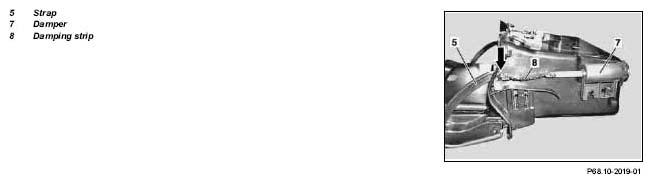

Fig 2: Identifying Damping Strip, Damper And Strap

	Removal, installation
1	Remove glove compartment (2)		AR68.10-P-1400M
2	Unclip damping strip (8) on right from strap (5), (arrow) on glove compartment lid (1)
3	Remove rubber stops (3) from strap (5)
4	Pull expanding anchor (4) out of glove compartment (2)	Pull expanding anchor out of glove compartment from inside
5	Remove glove compartment lid (1) together with hinges (6) uniformly downward
6	Install in opposite order
7	Adjust glove compartment lid		AR68.10-P-1300M
