Remove/install paneling on B-pillar - AR68.30-P-4700MC

MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection

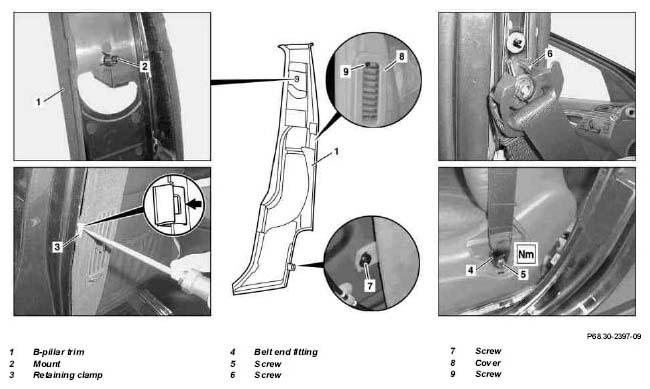

Fig 1: Identifying Paneling On B-Pillar Components -Model 220.175/178

	Remove, Install
1	Remove lumbar support control valve for rear seat backrest		AR91.12-P-1670M
2	Remove door sill molding for front and rear doors	Door sill molding in the rear is bolted on in area of lumbar support control valve.
3	Unscrew bolt (9) and detach cover (8)
4	Remove screw (7)
5	Detach edge guard in area of B-pillar paneling (1)
6	Press B-pillar paneling (1) out of retaining clamps (3)	Installation:  Guide bolt (6) into the mount (2) in the B-pillar paneling (1).
7	Unscrew bolt (5) from belt end fitting (4)		*BA91.40-P-1001-01A
8	Pull out belt at paneling (1) and detach paneling
9	Install in the reverse order

SEAT BELTS/BELT TENSIONERS
