Remove and install headliner - AR68.30-P-4300MC

MODEL 220.175 /178 with CODE (Z04) Light armoring with CODE (Z07) Top protection

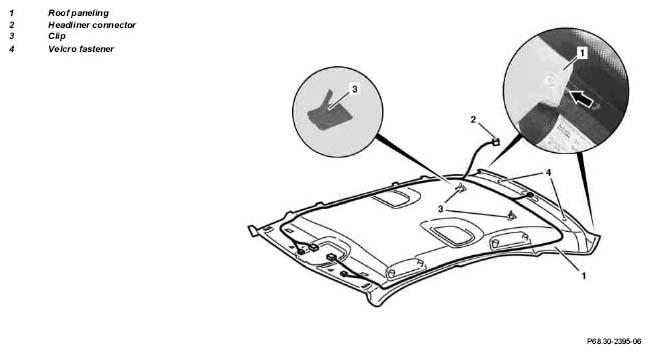

Fig 1: Identifying Headliner Remove/Install Components - Model 220.175/178

	Remove, Install
	Instructions for avoiding damage to windows installed in special high-security vehicles.	MODEL 210 with CODE Z04, Code Z06 MODEL 220 with CODE Z04, Code Z07	AH67.00-P-0003-01FB
1	Cover inner side of rear window
2	Remove paneling on A-pillar		AR68.30-P-4050MC
3	Remove paneling on B-pillar		AR68.30-P-4700MC
4	Remove paneling on C-pillar		AR68.30-P-4490MC
5	Remove parcel shelf	for Code Z04	AR68.30-P-4580MC
		for Code Z07	AR68.30-P-4580MB
6	Disconnect headliner connector (2) on right below parcel shelf
7	Unhook clips (arrow) out of C-pillar	Cover clips with felt, otherwise the rear window may become damaged.
8	Open Velcro fasteners (4)
9	Remove edge guard from door cutouts
10	Remove rear dome lamp
		for Code 220a	AR54.65-P-0004B
11	Remove rear dome lamp	for make-up mirror	AR82.20-P-0113M
		with gimbal-mounted interior lamp	AR82.20-P-0113MC
12	Remove rear and front handles
13	Remove sun blinds
14	Remove overhead control panel control module		AR82.20-P-1000M
15	Remove front passenger seat		AR91.10-P-1000M
16	Move driver seat down completely and fold down backrest
17	Remove inside rearview mirror	Support headliner (1) in front area, otherwise it may buckle.	AR68.40-P-0001M
18	Unhook headliner (1) from clips (3)	Gently pull down headliner in area of windshield and pull to the front.
19	Remove headliner (1) through passenger side rear door
20	Install in the reverse order
