Adjusting glove compartment lid - AR68.10-P-1300M

MODEL 215, 220

Illustrated on model 220

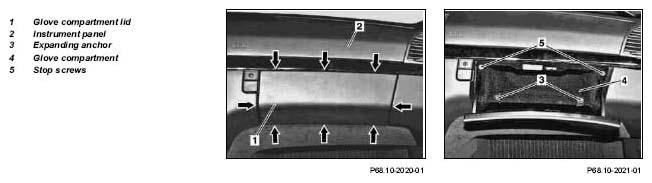

Fig 1: Locating Adjusting Glove Compartment Lid - Model 215,220

	Adjusting
	During entire operation pay attention to uniform transition and gap all the way around (arrows) on the glove compartment lid (1) in relation to the instrument panel (2)
1	Pull out both expanding anchors (3) from glove compartment lid (4) with small screwdriver
2	Close glove compartment lid (1), adjust horizontal gap and transitions (arrows).	Glove compartment lid (1) can be adjusted increment for increment on the hinge
3	Carefully open glove compartment lid (1) and press in expanding anchors (3)
4	Check gap width at side, adjust	Differences in the gap width can be corrected slightly by loosening the mounting screws (4 each) for the glove compartment (4) and then moving.
5	Check transition from glove compartment lid (1) to instrument panel (2), adjust	Adjustment is possible by screwing the two stop screws (5) in or out
6	Check for easy motion and proper function
