Retrofitting luggage net on trunk side - AZ68.50-P-0003A

MODEL 215

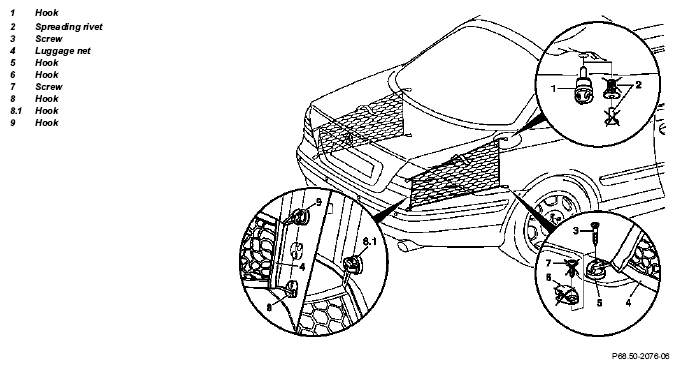

Fig 1: Identifying Retrofitting Luggage Net On Trunk Side - Model 215

	Removal
	The luggage net can be installed on the left or right side of the vehicle.
1	Remove spreading rivet (2)	No longer required
2	Unscrew screw (7) and remove hook (6)	Parts 6 and 7 are no longer required
	Installation
3	Install hook (1) with spacer sleeve and spreading nut	When screwing in hook (1) spread spreading rivet in hole
4	Install hook (5) with screw (3)
5	Hook luggage net (4) into hooks (5), (1), (8) and (9)	Ensure that luggage net loops catch in hook (8). On vehicles with luggage net on trunk floor, hook (8.1) is installed instead of hook (8).
6	After installing luggage net give these instructions to customer	When handing over the vehicle inform customer that luggage net is only suited for fastening light cargo during normal driving operation. It is not able to secure the cargo in the event of an accident. Observe operating instructions.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
B6 765 0033	Luggage net, trunk floor	1
