Removing and installing left or right rear axle speed sensor - AR42.40-P-0820GH

MODEL 163

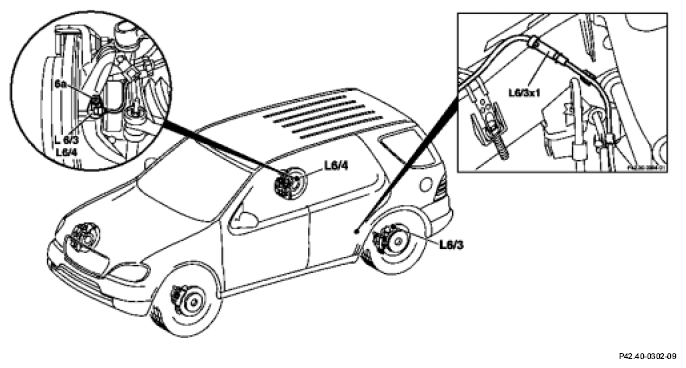

Fig 1: Locating Left Or Right Rear Axle Speed Sensor

Illustration/item, etc.	Notes on the work
6a	Speed sensor fixing bolts.	Replace bolts.	*BA42.40-P-1002-01A
L6/3, L6/4	Rear axle speed sensor	Installation:  Check wheel hub rotor for damage. Pay attention to cleanliness of magnetic tip.
		Lightly lubricate bore in wheel carrier.	*BR00.45-Z-1001-06A
L6/3x1, L6/4x1	Rear axle speed sensor connector	Installation:  Pay attention to correct routing

Acceleration slip regulation (ASR)

Number	Designation		Model 163
BA42.40-P-1002-01A	Self-locking bolt, rear axle speed sensor	Nm	8

Repair materials

Number	Designation	Order number
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51
