Plug assignment of 13-pin round plug on transmission electronic transmission control - AD27.19-P-2000-04A

Transmission 722.6 in models 129, 140, 163, 170, 202, 208, 210

Plug assignment of 13-pin round plug on transmission

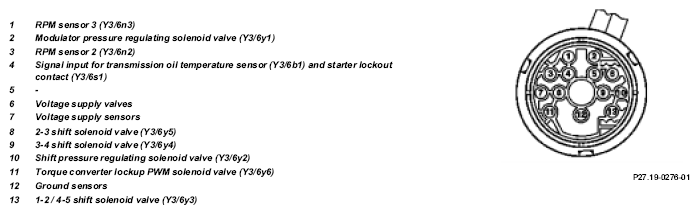

Fig 1: Identifying Transmission Electronic Transmission Control System
G04606516
