Assignment to coupling for electronic transmission control (ETC) control module - AD27.19-P-2000-03C

TRANSMISSION 722.6 as of 1.7.99 in models 202, 208, 210 with touch shift TRANSMISSION 722.6 in model 163 with touch shift TRANSMISSIONS 722.616/618 in model 170 with touch shift

Assignment to coupling for automatic clutch control module ETC (N15/3)

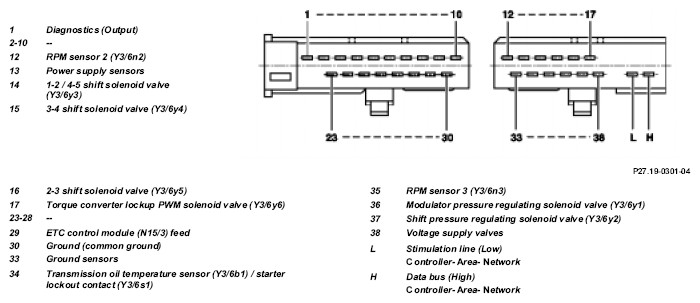

Fig 1: Identifying Electronic Transmission Control Module For Coupling
G04606515
