Assignment to coupling for electronic transmission control (ETC) control module - AD27.19-P-2000-03A

TRANSMISSION 722.6 up to 30.6.99 in models 202, 208, 210 without touch shift TRANSMISSION 722.6 in models 129, 140, 163 without touch shift TRANSMISSIONS 722.602/605 in model 170, without touch shift

Assignment to coupling for automatic clutch control module ETC (N15/3)

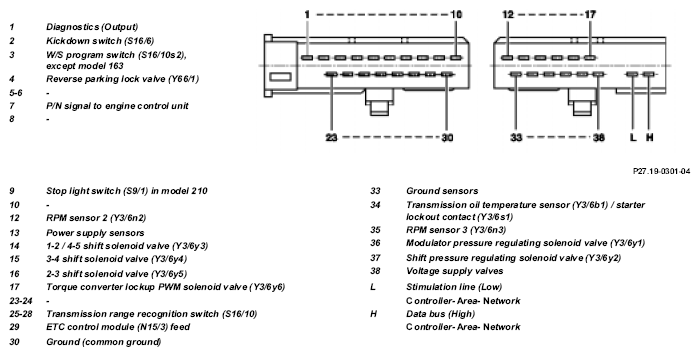

Fig 1: Identifying Electronic Transmission Control Module For Coupling
G04606514
