Removing and installing cover on rear seat backrest - AR91.18-P-1870GH
MODEL 163.136/154/172 up to 31.8.99
| Removal, installation | |||
|---|---|---|---|

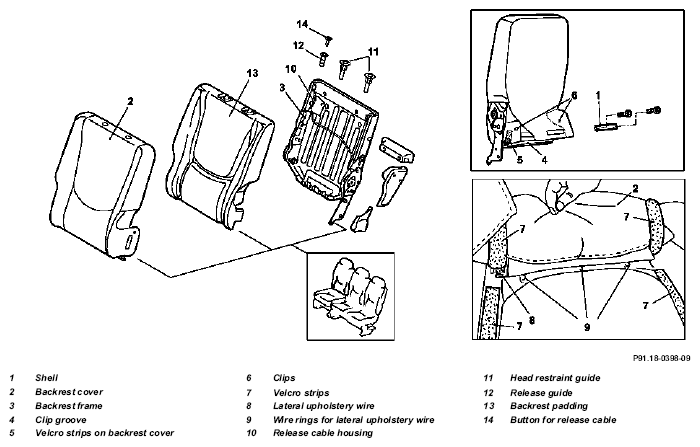

| 1 | Remove folding rear backrest | AR91.12-P-1720GH | |
| 2 | Unscrew screws for shell (1) | ||
| 3 | Remove shell (1) | ||
| 4 | Loosen clip groove (4) and Velcro strips (5) for backrest cover from backrest frame | ||
| 5 | Pull clips (6) out of backrest frame (3) | ||
| 6 | Pull backrest cover (2) off of Velcro strips (7) until wire rings for lateral upholstery wire (9) are visible | ||
| 7 | Bend open wire rings for lateral upholstery wire (9) | ||
| 8 | Unhook lateral upholstery wire (8) on backrest cover (2) from open wire rings (9) | ||
| 9 | Unscrew button for release cable (14) | ||
| 10 | Pull backrest cover (2) over backrest frame (3) | ||
| 11 | Unscrew screws on housing release cable (10) | Figure | |
| 12 | Remove housing release cable (10) | ||
| 13 | Remove backrest padding (13) from backrest frame (3) | ||
| 14 | Press head restraint guide (11) together at bottom end and pull out of backrest frame (3) | ||
| 15 | Remove backrest cover (2) with head restraint guide(11)and release guide (12) from backrest padding (13) | ||
| 16 | Remove head restraint guide (11) and release guide (12) from backrest cover (2) | ||
| 17 | Install in opposite order |
