Front seat adjustment switch cluster, location - GF91.29-P-2100-01GH

The front ESA switches (S22/S23)  are located on the outside of the seat cushion frame on the driver's and front passenger seats.

Left front

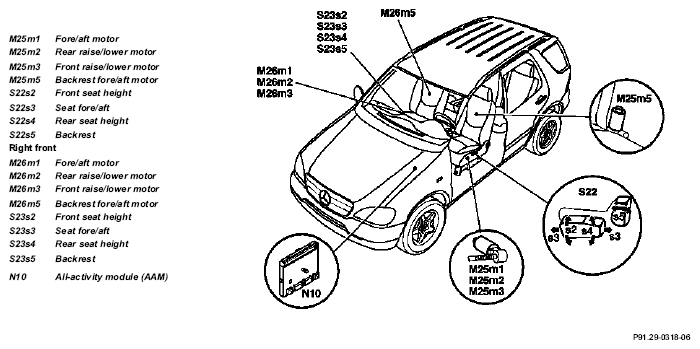

Fig 1: Identifying Front Seat Adjustment Switch Cluster Components
G04609205
