Secondary air injection relay - Testing electrical system, ME-SFI gasoline injection system - AD07.61-P-6000-24A

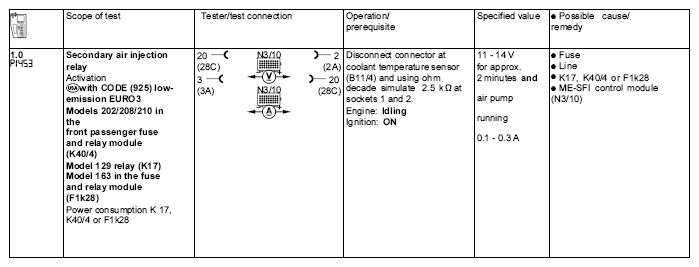

Fig 1: Secondary Air Injection Relay - Testing Electrical System, ME-SFI Gasoline Injection System
G04606069Courtesy of MERCEDES-BENZ USA
