Connector assignment for ME-SFI gasoline injection and ignition system - AD07.61-P-2000-02A

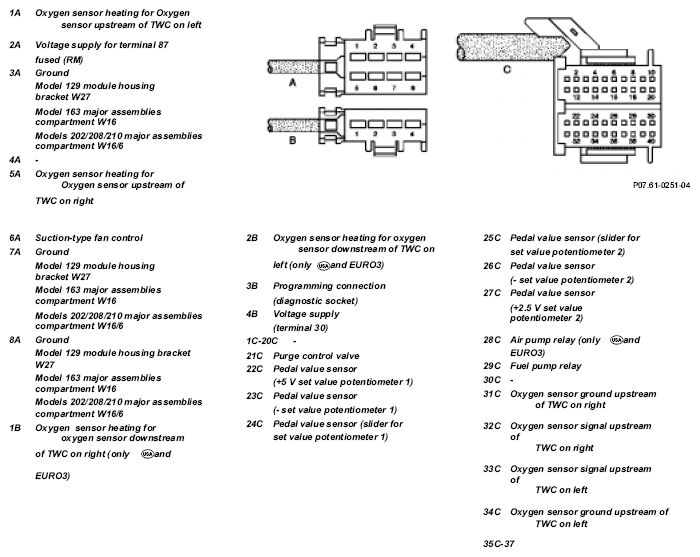

Fig 1: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (1 Of 4)
G04605972Courtesy of MERCEDES-BENZ USA

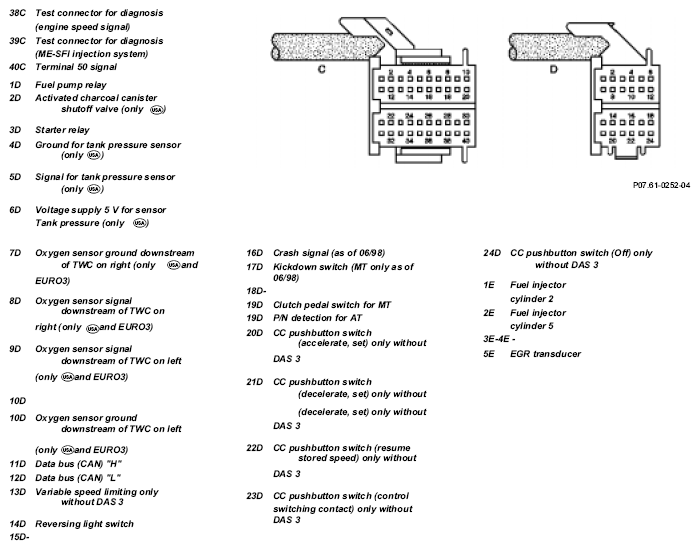

Fig 2: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (2 Of 4)
G04605973Courtesy of MERCEDES-BENZ USA

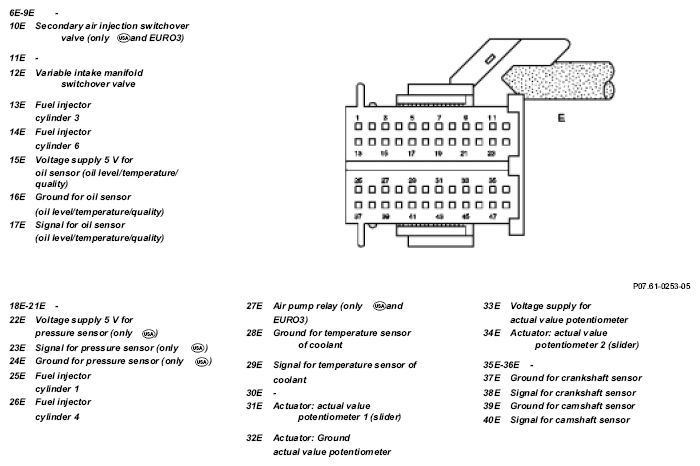

Fig 3: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (3 Of 4)
G04605974Courtesy of MERCEDES-BENZ USA

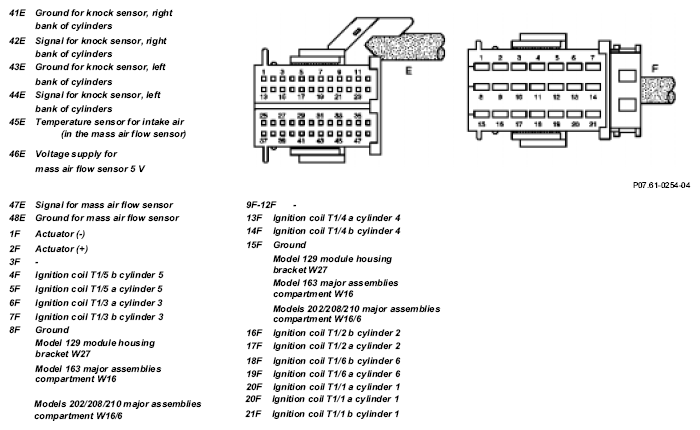

Fig 4: Identifying Connector Assignment For ME-SFI Gasoline Injection And Ignition System (4 Of 4)
G04605975Courtesy of MERCEDES-BENZ USA
