Remove/install side window between C and D pillar - AR67.30-P-2301GI

MODEL 163 with CODE (848) Electric pivoting side window

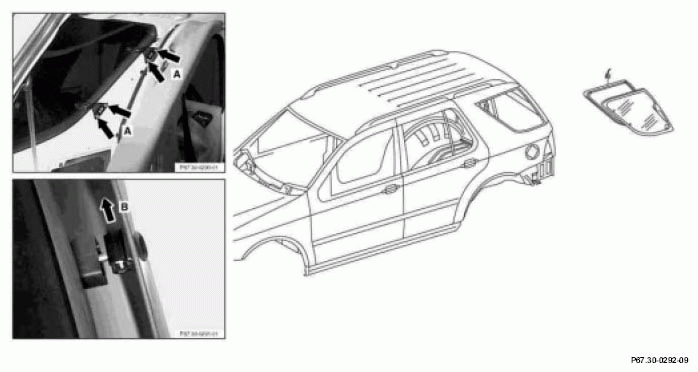

Fig 1: Identifying Side Window Between C And D Pillar

	Remove/Install
1	Remove paneling on C-pillar		AR68.30-P-4490GH
2	Secure window against falling down.	To avoid damage to window or paintwork.
3	Unscrew bolts (A) at hinges		*BA67.30-P-1001-01A
4	Pull back cover at opening mechanism Pull back cover at opening mechanism	For access to connecting point at opening mechanism.
5	Remove window	Caution! Do not damage window and paint if adhesive tape or support is removed. Extend window toward top (B). Check seal, if necessary: ↓
		Replace seal of side window	AR67.30-P-4060-01GH
6	Install in the reverse order

Side windows

Number	Designation		Model Series 163
BA67.30-P-1001-01A	Screw for side window hinge to C pillar Screw for side window hinge to C pillar	NM	12
