Test of electrical system CF convenience relay - AD72.29-P-6000-22GH
Test of electrical system CF convenience relay - AD72.29-P-6000-22GH

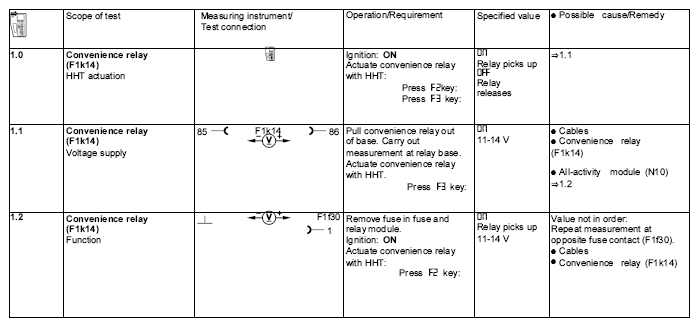

Fig 1: Test Of Electrical System CF Convenience Relay
