Removing and installing spare wheel cover - AR68.30-P-4610GH

MODEL 163.174

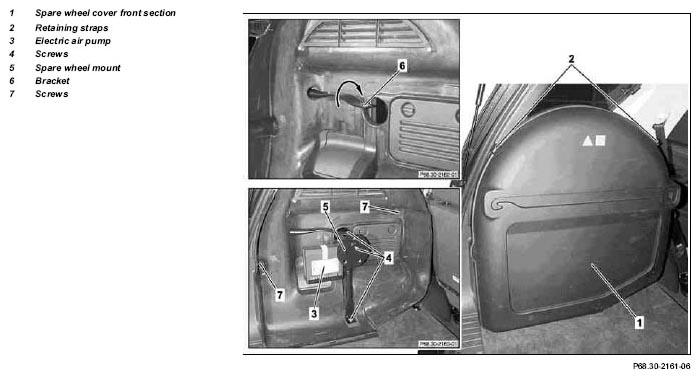

Fig 1: Identifying Spare Wheel Cover Components

	Removal, installation
1	Remove cargo space cover	See Owner's Manual.
2	Loosen retaining straps (2) and remove spare wheel cover front section (1)
3	Remove spare wheel		*BA40.10-P-1002-01A
4	Remove electric air pump (3)
5	Unscrew screws (4) and remove spare wheel mount (5)
6	Remove bracket (6)	Turn in clockwise direction until bracket (6) releases at D-pillar.
7	Remove rear wall on spare wheel cover	2 screws.
8	Install in opposite order

Wheels

Number	Designation		Model 163.174
BA40.10-P-1002-01A	Bolt for spare wheel on inside of spare wheel mount	Nm	50
