Removing and installing cover at gearshift lever - AR68.20-P-2310GH
MODEL 163.113 /136 /154 /172 /174 up to 31.8.01
| Remove/install | |||
|---|---|---|---|

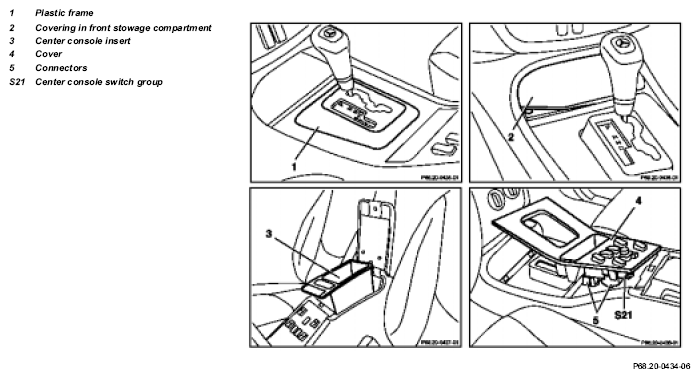

| 1 | Remove plastic frame (1) upward | Figure | |
| 2 | Remove covering in stowage compartment (2) | ||
| 3 | Remove center console insert (3) | ||
| 4 | Press cover (4) out of catch in center console at rear and sides with long wedge | Figure | |
| 5 | Disconnect connectors (5) from center console switch group (S21) | ||
| 6 | Install in the reverse order |
