Central locking (CL), location of components - GF80.20-P-0005-01GH
Central locking (CL), location of components - GF80.20-P-0005-01GH
Location of components

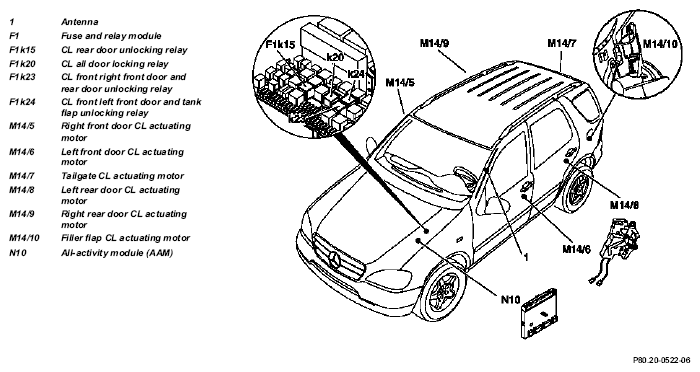

Fig 1: Identifying Central Locking Components Location
