Anti-theft alarm system (ATA [EDW]), function - GF80.50-P-0001GH
MODEL 163 with CODE (551a) Anti-theft alarm system (ATA)

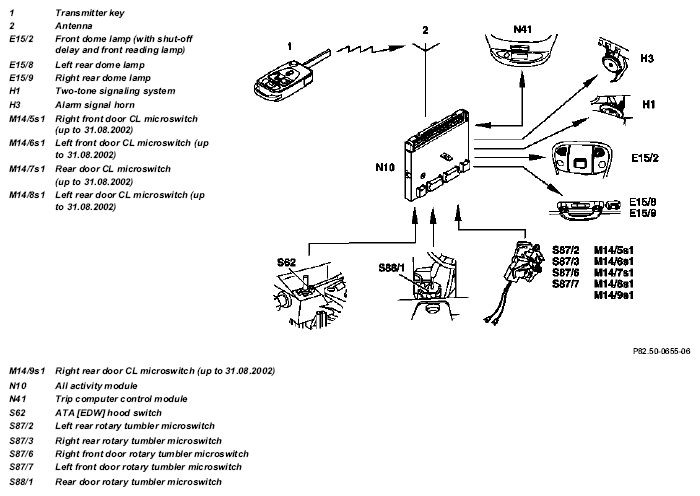

ATA [EDW] networking
The anti-theft alarm (ATA) is activated when the central locking is locked with the transmitter key, and deactivated when the central locking is unlocked. Additionally, a panic alarm can be triggered on the transmitter key.
| Activate anti-theft alarm (ATA) | GF80.50-P-2002GH | ||
| Deactivate anti-theft alarm (ATA) | GF80.50-P-2003GH | ||
| Lock central locking with transmitter key | GF80.20-P-3005GH | ||
| Unlock central locking with transmitter key | GF80.20-P-3006GH | ||
| Activate alarm with panic switch | GF80.50-P-3014GH | ||
| Anti-theft alarm system, location of components | GF80.50-P-0001-02GH |
