Reverse signal, testing, electrical system, Audio 30 APS - AD82.61-P-6001-04A
Reverse signal, testing, electrical system, Audio 30 APS - AD82.61-P-6001-04A

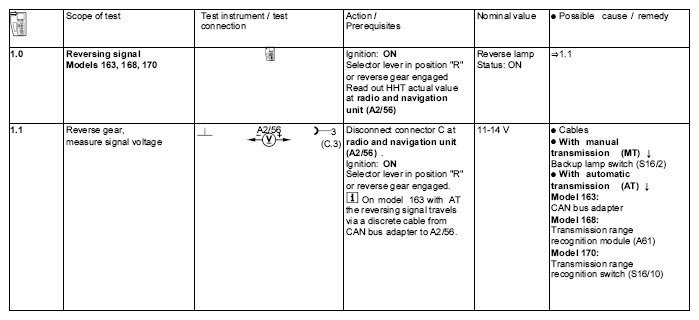

Fig 1: Reverse Signal, Testing, Electrical System, Audio 30 APS
