CD-player mode, function - GF82.60-P-2002GI

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357) Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE (491) U.S. version

The radio and navigation module (A2/56)  has various optional possibilities for the CD player mode.

CD mode with single CD drive (optional)

The radio and navigation module (A2/56)  has an integrated CD drive as an option (code 818) intended for playing audio CD's  . If the radio and navigation module (A2/56)  is equipped with a CD  drive for navigation (Code 357) as an option, it is also possible to play audio CD's  . (However, during the navigation mode it is not possible to play audio CD's  Opening the operating and display module "(Open  " button) allows access to the CC  slot and CD  slot.

CD changer mode (with code 819)

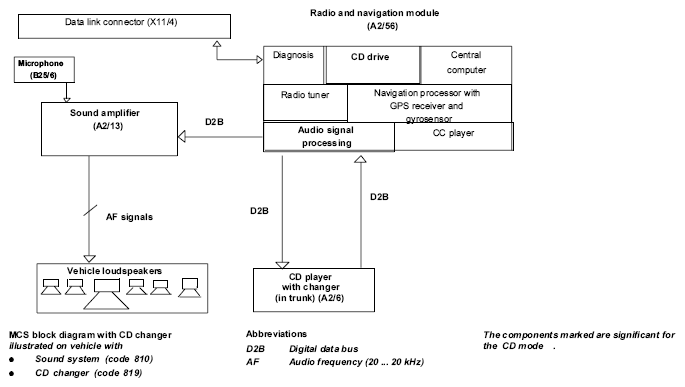

The CD player with changer (A2/6)  is actuated by the radio and navigation module (A2/56)  .

The control signals and audio data from the CD player with changer (in trunk) (A2/6)  are transmitted via the digital data bus (D2B  ). The changer is actuated by pressing the "CD" button twice  . (When single CD drive is installed).

Insert only 12 cm CD's into the CD player with changer (in trunk) (A2/6)  , also do not use 8 cm CD adapter  .

On sound system (code 810) the sound amplifier (A2/13)  takes over final amplification of the audio signals.

The signals between the radio and navigation module (A2/56)  and sound amplifier (A2/13)  are transmitted via the digital data bus (D2B  ).

The amplified signals are output by the vehicle loudspeaker system.

If the vehicle is equipped with sound amplifier (A2/13)  the radio and navigation module (A2/56)  should be coded correspondingly with STAR diagnosis, otherwise malfunctions can occur when reproducing audio signals.

When a magazine is inserted in the CD  changer it is checked and a table of contents is made up. When the test is completed the system automatically switches over to the playback mode and starts with the first title or next possible compact disc.

If the system switches over to the CD  mode before the test is completed the system starts playback of the CD  which was presently being checked.

The radio and navigation module (A2/56)  offers the following functions in combination with the CD player with changer (in trunk) (A2/6)  and/or single CD drive  :

• Scan function

  When the multifunction " Scan  " key is pressed each title on the current CD is played for approx. 8 s  . The function is terminated by pressing the multifunction " Scan  " key again.

• Title forward/backward

  If the "joystick  " is pressed to right the next CD  title is skipped. Pressing to left within the first 10 s  of playback causes jumping to the previous title, otherwise to the beginning of the title presently being played. If the" joystick  " is held to left or right the changer jumps from one title to the next within short time intervals without playing them.

• Fast forward/rewind (music search)

  If the "joystick  " is pressed up or down the titles are played quickly. This allows specific parts of a title to be played or skipped. When the start or end of the CD  is reached the search is interrupted.

• Title repetition and random playback

  Random playback can be activated/deactivated with the multifunction " RDM  " key. When activated this function is indicated on the display and random playback can then be selected. The random playback feature affects only the CD  presently being played back. Title repetition can be activated/ deactivated with the multifunction " RPT  key. The title presently selected is repeated until the function is deactivated.

  The random playback and title repetition remain active, even when the radio and navigation module (A2/56)  is switched off and switched back on again. Actuating these two functions simultaneously is not possible.

• Pause

  The multifunction key" II  "(Pause  ) interrupts the title presently being played. Pressing again continues playback.

• Direct title selection

  Pressing the " *" button followed by entry of the desired title via the number block allows direct selection of the title.

• Multifunction key Time

  By pressing the multifunction key" Time  " it is possible to change between 2 different display modes:

  • Display of title number and previous playback time of title (standard setting)
  • Number of titles and entire playback time of CD  ("Time  appears on display).

CD title assignment, function

Each CD  has a permanently stored, so-called T  able of C  ontents (TOC  ) entry. The radio and navigation module (A2/56)  recognizes the CD  clearly on the basis of this entry and can automatically designate it (even when the CD is then inserted into another CD magazine) after the title has been assigned once by the user.

Moreover, the TOC  entry includes information about the number of titles on a CD  and the entire playing time of the CD  .
