Rear window defroster relay, location/purpose - GF67.29-P-3001GI
MODEL 163 as of 1.12.99

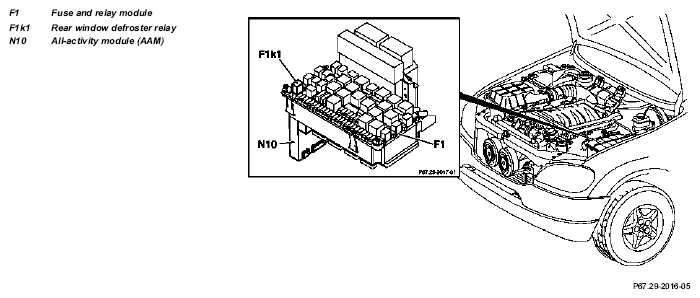

| Rear window defroster relay, location | The rear window defroster relay (F1k1) is located on the left front in the engine compartment on the all-activity module (AAM) (N10). | ||
| Rear window defroster relay, purpose | The relay (F1k1) is the operating relay for the rear window defroster. It is actuated by the extended activity module (EAM) (N10/1). Circuit 30 is connected to the rear window defroster (R1) by the antenna splitter (A2/5) over the closed switch contact of the relay. |
