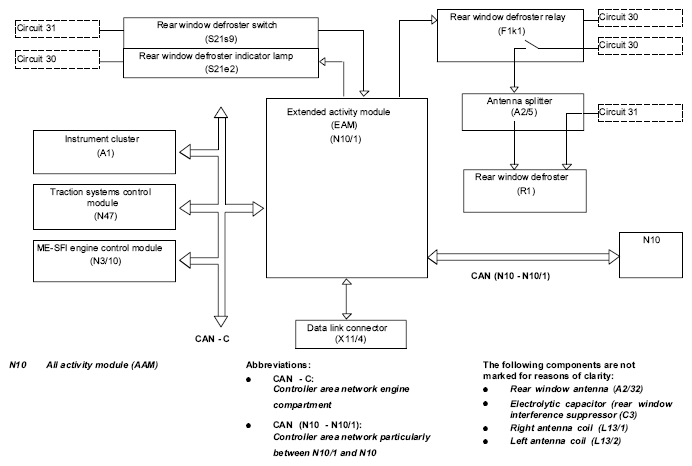

Rear window defroster (RWD), interlinkage of components - GF67.29-P-0003-02GI
Model 163 as of 12/99
CAN (N10 - N10/1) is a CAN connection between the all-activity module (AAM) (N10) and the extended activity module (EAM) (N10/1).
The CAN (N10-N10/1) exists only between these two control modules. It transmits information from the engine compartment CAN with circuit 15 switched off.
