Remove/install fog lamp bulb - AR82.10-P-1825GH

MODEL 163.113/128/1 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL 163.174

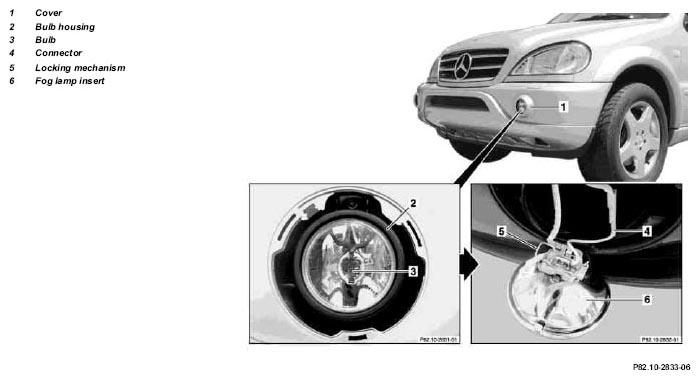

Fig 1: Identifying Fog Lamp Components

	Remove/install
1	Remove cover (1) from bumper	Do not break retaining lugs.
2	Remove bulb housing (2)	To unlock, rotate counterclockwise. Installation:  Ensure that the locking device has locked securely.
3	Remove fog lamp insert (6) from housing	Installation wedge	Fig 2
4	Disconnect connector (4)
5	Remove bulb on the back of the fog lamp insert (6)	Do not hold the bulb with bare fingers, as fingerprints bake and leave behind opaqueness on the bulb. Use a soft, lint-free cloth. Lock securely.
6	Install in the reverse order

Fig 2: Identifying Longitudinal Wedge (115 589 03 59 00)
