Fiber optic cable, location - GF82.00-P-4000-01GH

Model 163

Components for ECE version

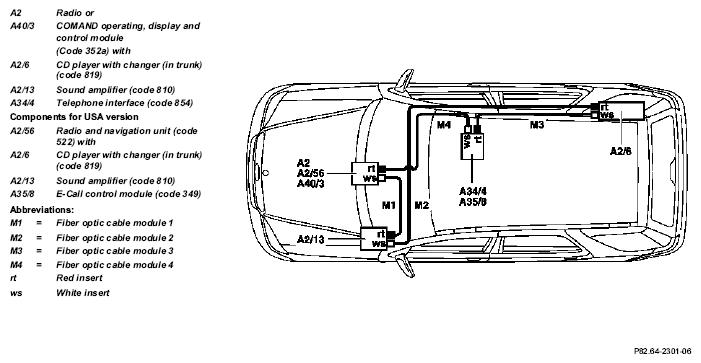

Fig 1: Identifying Fiber Optic Cable Components Location

G04608463
