E-Call backup antenna, location/purpose - GF82.95-P-4205GH

MODEL 163 as of 1.9.01 with CODE (349) E-Call emergency call system with CODE (491) U.S. version

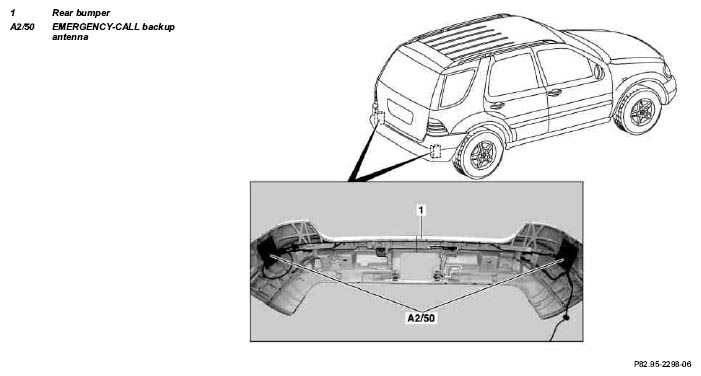

Fig 1: Identifying E-Call Backup Antenna Location
G04608554
  E-Call backup antenna, location
  • The EMERGENCY CALL backup antenna (A2/50)  is mounted on the inside  of the rear bumper  .

  E-Call backup antenna, purpose
  • Transmitting  and receiving  the EMERGENCY CALL signals  if reception via the CTEL and GPS roof antenna (A2/49)  is poor.
