Modify roof paneling for installing handle and clamping strap mount - AN68.30-P-0001-02A

Model 163.113 /154 #A up to 289564, #X up to 754619 Model 163.136/ 172 with code (847), 3rd seat row

Handles

1. Remove clothes hook and accessory hook.
2. Position template (1) to roof paneling.

   Fasten template with adhesive tape.

3. Mark points which must be cut out for installing the handle.
4. Remove template (1).
5. Cut out cutouts for handle.

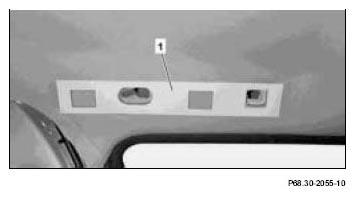

   Fig 1: Identifying Handle Template



Only on vehicles with safety standard FMVSS201.

1. 6.1 Install shock absorber (5).

   Danger of cracks. Carefully pull roof paneling downward and install shock absorber between roof paneling and roof frame.

   The flat side of the shock absorber (5) points in the direction of the roof frame.

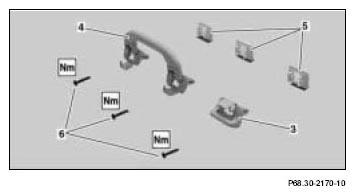

   Fig 2: Identifying Accessory Hook And Pivot Handle - Only On Vehicles With Safety Standard FMVSS201.



1. 7 Install accessory hook (2), clamping strap mount (3) and pivot handle (4).

   On vehicles with FMVSS201  install special clamping strap mounts and pivot handles with screws (6) .

2. 8 Repeat on opposite side.

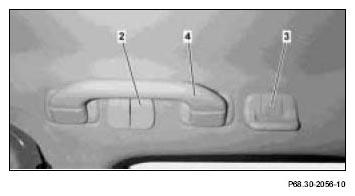

   Fig 3: Identifying Accessory Hook, Clamping Strap Mount And Pivot Handle - On Vehicles With FMVSS201
