Connections for radio, testing electrical system, radio (RD) - AD82.60-P-2000-02A

MB radio in models 129, 168, 170, 202, 208, 210 up to 31.05.98 and models 140, 163

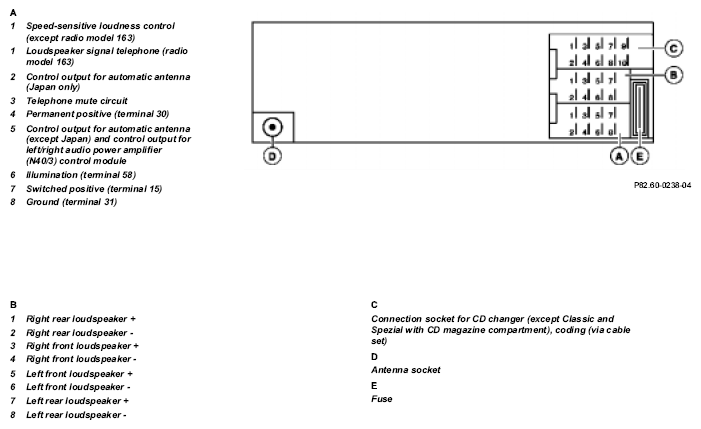

Fig 1: Identifying Socket Connections For Radio
