Retrofitting D-network cell phone - AZ82.70-P-0001D
MODEL 163 as of 1.12.99 up to 31.8.00
Nokia 3110 portable cellular telephone

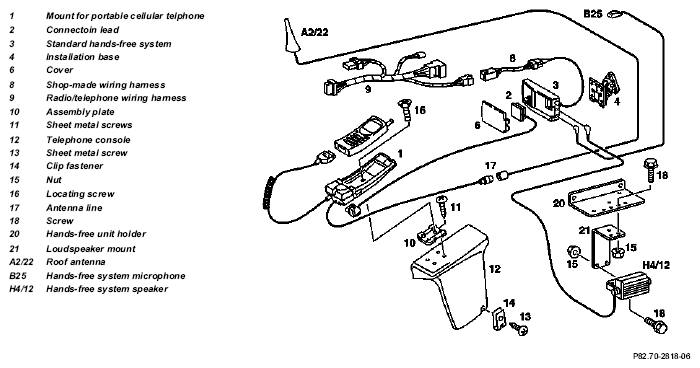

System illustration for installation
| Removal | |||
|---|---|---|---|
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove radio | ||
| 3 | Remove stowage compartment below radio | ||
| 4 | Remove stowage compartment in center armrest | ||
| 5 | Remove wooden cover from shift lever | ||
| 6 | Remove cover below instrument panel on right | ||
| 7 | Remove automatic A/C control panel | ||
| 8 | Remove A-pillar paneling at top right | ||
| 9 | Tie out D-network antenna lead | ||
| Installation | |||
| 10 | Install holder on telephone console | AZ82.70-P-0001-01A | |
| 11 | Install hands-free microphone | AZ82.70-P-0001-02A | |
| 12 | Modify wiring harness and install | AZ82.70-P-0001-04D | |
| 13 | Install loudspeaker | AZ82.70-P-0001-03D | |
| 14 | Install D-net antenna on roof | Install antenna without modification. |
|
| 15 | Retrofit antenna lead | AZ82.70-P-0002-01A | |
| 16 | Check portable cellular telephone for proper function | ||
| 17 | Reassemble vehicle, 8-1 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 41 55 | Nokia 3110 portable cellular telephone | 1 |
| B6 787 41 60 | Motor vehicle installation kit, Nokia CARK-74 | 1 |
| B6 788 01 28 | Antenna radiator, Kathrein | 1 |
| B6 787 41 62 | Wiring harness assy. | 1 |
| B6 788 03 46 | Telephone console, anthracite, left-hand steering | 1 |
| B6 788 03 49 | Telephone console, anthracite, right-hand steering | 1 |
| B6 788 03 47 | Telephone console, medium orion-gray, left-hand steering | 1 |
| B6 788 03 50 | Telephone console, medium orion-gray, right-hand steering | 1 |
| B6 788 03 48 | Telephone console, java, left-hand steering | 1 |
| B6 788 03 51 | Telephone console, java, right-hand steering | 1 |
| A035 545 0328 | Packard connector housing | 1 |
| A035 545 1128 | Packard terminals | 5 |
| N007 985 004 107 | Screw | 5 |
| N304 032 004 002 | Nut | 5 |
| commercially available | Foam rubber | as required |
| B6 788 03 52 | Hands-free unit holder | 1 |
| B6 788 03 53 | Loudspeaker mount | 1 |
| A163 540 02 13 | Antenna lead (adapter lead on Audio 30 APS radio) | 1 |
| A000 989 92 71 | Special glue | as required |
