Removing and installing outside temperature indicator sensor - AR54.30-P-6341GH

MODEL 163 with CODE (240a) outside temperature indicator

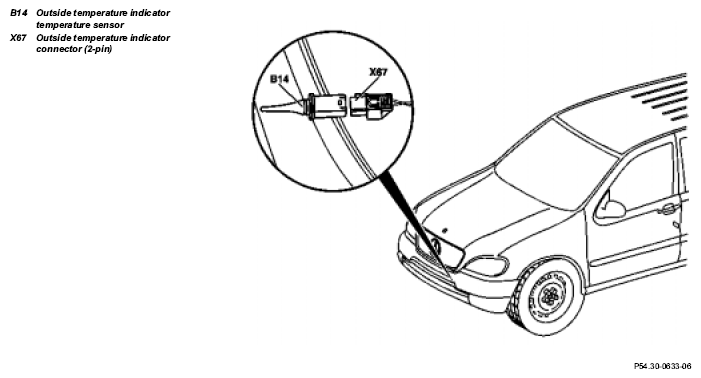

Fig 1: Identifying Outside Temperature Indicator Temperature Sensor And Connector (2-Pin)

	Removing, installing
1	Open engine hood and position upright
2	Pull outside temperature indicator temperature sensor (B14) out of mount in bumper	Installation:  Insert temperature sensor in the mount the in bumper until it locks in position.
3	Disconnect outside temperature indicator connector (2-pin) (X67) and remove outside temperature indicator temperature sensor
4	Install in reverse order
5	Carry out function test
