Retrofit auxiliary interface module - AZ82.60-P-0004-04A
Model 163.113/136 /154 /172 /174 #A as of 145273 289564,
Model 163.113 /136 /154 /172 #X as of 708319 up to 754619

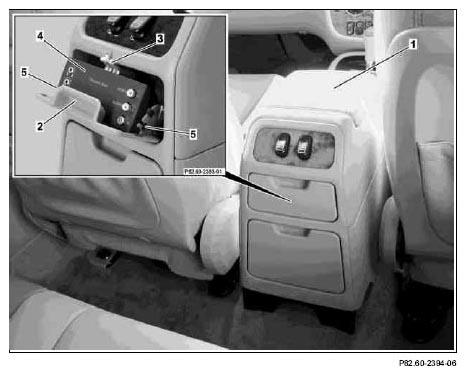

- Place center console (1) on workbench.
Ensure that the center console is not damaged or dirty.
- Remove rear ashtray insert.
- Open ashtray flap completely.
Press retaining spring (3) downward.
- Insert auxiliary interface module (4) into ashtray flap (2) and secure with bolts (5).
Do not overtighten bolts.
Previously installed bolts must be removed before installing the auxiliary interface module. Guide wiring harness through lower right corner of the ashtray opening. Guide retaining spring (3) through between board and cover panel.
- Close ashtray flap.
Press retaining spring (3) downward.
