Radio illumination, testing electrical system, radio (RD) - AD82.60-P-6000-10A
Radio illumination, testing electrical system, radio (RD) - AD82.60-P-6000-10A

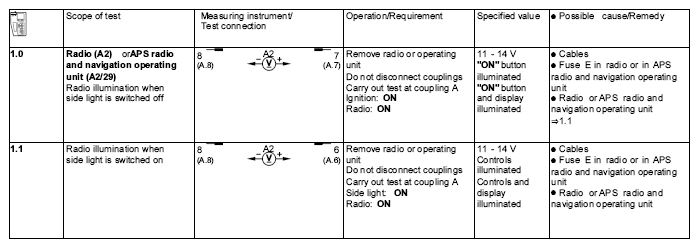

Fig 1: Radio Illumination, Testing Electrical System, Radio (RD)
