Wiper system test of electrical system tailgate wiper motor - AD82.30-P-6002-08GH
Wiper system test of electrical system tailgate wiper motor - AD82.30-P-6002-08GH

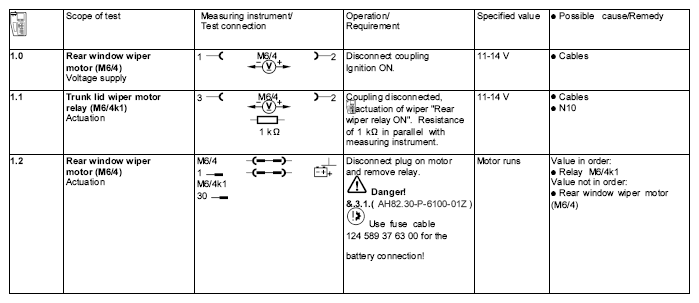

Fig 1: Wiper System Test Of Electrical System Tailgate Wiper Motor
