Retrofitting diagnostic cable - AN82.61-P-0001-03A
Model 163

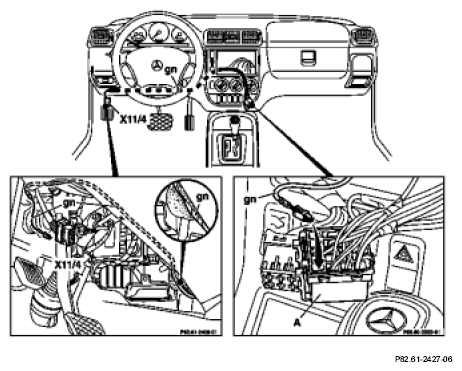

- Route green (gn) wire from radio shaft to data link connector (X11/4) according to figure and fasten with cable straps.
Cut off excessive length at data link connector.
- Install contact spring on end of green (gn) wire in radio shaft and insert into chamber 2 of connector A for radio and navigation operating unit (A2/29) standard wiring harness.
- Open data link connector (X11/4) and expose chamber 12.
- Install contact spring on end of green (gn) lead on data link connector (X11/4) and insert into chamber 12 of data link connector (X11/4).
If a lead is already present in chamber 12 connect it to the green (gn) lead using a solder connector.
