Remove/install door foil on front door - AR72.10-P-1010GH

MODEL 163.113 /128 /136 /154 /172 /174 /175 Outer door foil

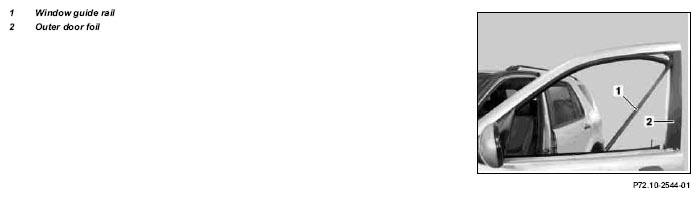

Fig 1: Identifying Outer Front Door Foil Components

	Remove
1	Remove outer sealing rail		AR72.10-P-1700GH
2	Pull out rear of window guide rail (1)	Do not damage guide rail.
3	Carefully and evenly heat outer door foil (2)	Do not damage paint.
			*WH58.30-Z-1004-20A
4	Remove outer door foil (2)	Door foil cannot be reused.
			Figure
	Install
5	Clean door sheet metal in area where outer door foil (2) is to be installed
6	Install new outer door foil (2)	Ensure proper positioning. Ensure foil does not cover hole for screw used to secure outer sealing rail.
7	Reinstall rear of window guide rail (1)	Verify proper/smooth operation of window.
8	Reinstall outer sealing rail		AR72.10-P-1700GH

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
